Arora Refractories — Precision Heat Engineering Since 1977

Precision Refractory Solutions
for Every Furnace, Every Industry.

From firebricks to ceramic fibre, castables to pre-cast blocks — nearly 50 years of heat engineering expertise, 400+ industrial clients across India, backed by channel partnerships with Calderys & Morgan Thermal Ceramics.

47+

Years Since 1977

400+

Industrial Clients

50+

Refractory Grades

1800°C

Max Rated Temp

Trusted representative of India's top refractory manufacturers.

Calderys India Refractories Ltd.

Full range of castables, mortars & monolithics — Whytheat, Insulyte, Accmon, Firecrete series.

Authorized Channel Partner

Morgan Thermal Ceramics (Murugappa Group)

Complete ceramic fibre lineup — Superwool Plus, Cerablanket, Cerachem, Saber, Z-Bloc modules.

Authorized Distributor

Nearly five decades of engineering heat solutions for India's heaviest industries.

Founded in 1977 by Shri. Ramesh Arora, Arora Refractories has grown into a trusted manufacturer, supplier, stockist and channel partner for refractory products across the country.

We operate across three integrated business arms — in-house manufacturing of pre-cast pre-fired blocks and firebricks, authorized distribution of Calderys castables and Morgan Thermal ceramic fibre, and on-site refractory lining services executed by our in-house contractor team.

Our founder brings 50+ years of personal expertise in refractory design, insulation, and energy saving — knowledge we pass on to every plant manager, procurement head, and design engineer we serve.

Unless you have 100% customer satisfaction… you must improve.

— Shri. Ramesh Arora, Founder

47+

Years Experience

400+

Clients Served

18+

Industries Covered

Product Portfolio

9 refractory families. 50+ grades. Full technical specifications.

Every product below carries the exact spec sheet you'd expect on a procurement RFQ — no clicks, no digging.

🌡️ 1300°C – 1580°C

Alumina Series · AR-Grade

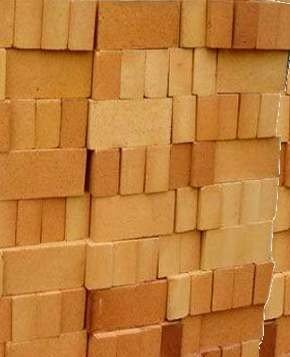

Refractory Firebricks — AR-30 through AR-80B

Our alumina firebrick range covers everything from 30% to 80% Al₂O₃ — engineered for hot-face linings across boilers, foundries, rolling mills, and reheating furnaces. Every grade meets IS 8 commercial standards.

PCE from Or 30 to Or 39 (1670°C to 1850°C)
CCS from 250 to 500+ kg/cm²
Low iron variants for reducing atmospheres
Custom shapes & sizes on request

Request Firebrick Quote →

Firebricks — Full Technical Specifications 11 GRADES

Grade	Al₂O₃ (%)	Fe₂O₃ (%)	PCE Or	BD (g/cc)	AP (%)	CCS (kg/cm²)	Max Use Temp
AR-30	30 min	2.5 max	28	1.95	24	250	1300°C
AR-40	40 min	2.5 max	30	2.05	22	300	1400°C
AR-IS-8 Commercial	36–38	2.5 max	30	2.00	23	300	1400°C
AR-45	45 min	2.0 max	32	2.15	22	350	1450°C
AR-45D	45 min	2.0 max	34	2.20	20	400	1470°C
AR-50B	50 min	2.0 max	33	2.20	21	350	1430°C
AR-60B	60 min	1.5 max	34	2.30	20	400	1430°C
AR-62D	62 min	1.5 max	37	2.40	18	450	1580°C
AR-70B	70 min	1.5 max	36	2.45	19	450	1470°C
AR-80B	80 min	1.5 max	38	2.65	20	500	1500°C
AR-SMT	56 min	1.5 max	35	2.30	20	420	1500°C

PCE = Pyrometric Cone Equivalent · BD = Bulk Density · AP = Apparent Porosity · CCS = Cold Crushing Strength. Values are typical; ± tolerance per IS standards.

🌡️ 800°C – 1400°C

Backup Insulation

Insulating Firebricks — CFI, HFI, HFK & MICA

Low-density insulating bricks for backup linings, roofs, and doors — engineered to cut heat loss and improve furnace efficiency. Available in five density grades.

Bulk density from 0.48 to 1.1 g/cc
Low thermal conductivity — significant energy savings
Available in standard IS shapes & custom sizes
Perfect for cold-face and roof applications

Request Insulation Quote →

Insulation Bricks — Technical Data 5 GRADES

Grade	BD (g/cc)	Al₂O₃ (%)	SiO₂ (%)	Fe₂O₃ (%)	CCS (kg/cm²)	Application
CFI	0.75 – 0.80	32 – 36	50 – 55	1.5 max	15	Backup insulation
HFI-II	0.85 – 0.95	36 – 40	48 – 52	1.5 max	20	Furnace walls
HFI	0.9 – 1.1	38 – 42	46 – 50	1.5 max	25	Hot backup
HFK	1.0 – 1.1	42 – 46	44 – 48	1.5 max	30	Kilns & furnaces
MICA	0.48 – 0.53	28 – 32	52 – 56	1.0 max	10	Low-temp insulation

🌡️ 1000°C – 1700°C

Calderys Authorized Channel Partner

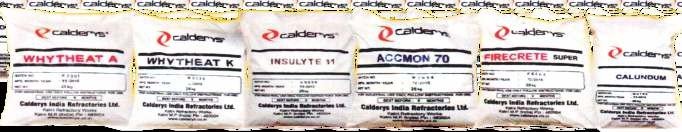

Castables & Mortars — Full Calderys Range

Complete monolithic solutions from Calderys India — high-alumina Whytheat, induction Coilcoat, insulating Insulyte, and specialized Firecrete, Boilercrete, Accmon, Thermocrete series.

High alumina up to 88% (Whytheat A, 1700°C)
Induction furnace linings (Coilcoat A)
Boiler linings (Boilercrete, 1000°C)
Precast blocks — Calundum, PCPF Dura RFA 90 & 95

Request Castable Quote →

Castables Range — Selection Guide 9+ GRADES

Product	Al₂O₃ (%)	Max Temp	BD (g/cc)	Type	Application
Whytheat A	85 – 88	1700°C	2.75	High-Alumina LCC	Steel ladle · reheating furnace
Coilcoat A	60 – 65	1650°C	2.85	Induction	Induction furnace lining
Whytheat K	60 – 65	1600°C	2.60	LCC	General high-temp lining
Accmon 70	68 – 72	1600°C	2.70	Low Cement	Ladle safety & foundry
Firecrete Super	45 – 50	1450°C	2.30	Conventional	Boiler & annealing
Thermocrete Super	40 – 45	1350°C	2.10	Insulating	Backup insulation
Insulyte 11	38 – 42	1300°C	1.20	Lightweight	Cold-face insulation
Boilercrete	30 – 35	1000°C	1.85	Boiler grade	Boiler firebox & ducts
Accoset 50	48 – 52	1500°C	2.35	Self-flow	Complex geometries

Also available: Calundum precast · PCPF Dura Blocks (Coal Fired) · RFA 90% & RFA Super 95% for aggressive service.

🌡️ 1050°C – 1400°C

Morgan Thermal Ceramics Authorized

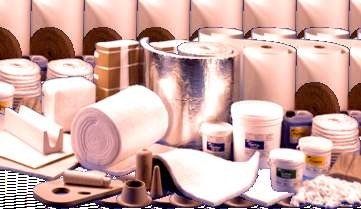

Ceramic Fibre Products — Full Morgan Range

Complete high-temp insulation portfolio from Morgan Thermal Ceramics (Murugappa Group) — bulk fibre, Superwool Plus, Cerablanket, Cerachem, Saber, Pyrofold, Z-Bloc modules and more.

Superwool Plus Blanket — bio-soluble, low bio-persistence
Cerablanket / Cerachem — classification 1260°C / 1400°C
Modules — Saber, Pyrofold, Z-Bloc
Board & shapes, textiles, paper, veneering cement

Request Ceramic Fibre Quote →

Ceramic Fibre — Product Family 10+ ITEMS

Product	Class. Temp	Density	Form	Best For
Bulk Fibre	1260 / 1400°C	—	Loose	Packing & expansion joints
Superwool Plus Blanket	1200°C	96 / 128 kg/m³	Blanket	Bio-soluble insulation
Cerablanket	1260°C	96 / 128 kg/m³	Blanket	General industrial
Cerachem Blanket	1400°C	96 / 128 kg/m³	Blanket	High-temp furnaces
Saber Bloc / Pyrofold / Z-Bloc	1260 – 1400°C	190 – 240 kg/m³	Module	Fast furnace lining
Veneering Modules	1260°C	200 kg/m³	Module	Hot-face overlay
Moist Felt	1050 – 1260°C	Variable	Sheet	Complex shapes
Board & Shapes	1260 – 1400°C	240 – 320 kg/m³	Rigid	Backup insulation
Textiles / Paper / Rope	1050 – 1260°C	—	Woven	Gaskets & seals
Veneering Cement & Mastic	1260°C	—	Paste	Bonding & repair

🌡️ 800°C – 1100°C

Backup Insulation · H-Grade

Calcium Silicate Blocks & Pipe Covering

High-temperature calcium silicate blocks and rigid pipe insulation — H-800, H-1000, H-1100 grade. Ideal for backup insulation on boilers, ducting, steam lines, and process piping.

Blocks: H-800 / H-1000 / H-1100 grades
Rigid Pipe Covering: H-800 grade for process piping
Low thermal conductivity — proven energy savings
Asbestos-free · non-combustible

Request Cal-Sil Quote →

Calcium Silicate — 8-Point Spec Sheet 3 GRADES

Property	H-800	H-1000	H-1100
Max Service Temp	800°C	1000°C	1100°C
Bulk Density (kg/m³)	230 – 260	240 – 280	260 – 300
Compressive Strength (kg/cm²)	≥ 4.5	≥ 5.5	≥ 6.5
Flexural Strength (kg/cm²)	≥ 3.0	≥ 3.5	≥ 4.0
Thermal Conductivity @ 200°C (W/mK)	0.061	0.066	0.075
Linear Shrinkage (24h @ max temp)	< 2 %	< 2 %	< 2 %
Non-Combustibility	Class A1	Class A1	Class A1
Chemical: CaO + SiO₂	> 90 %	> 90 %	> 90 %

🧪 Chemical Resistant

Chemical Industry

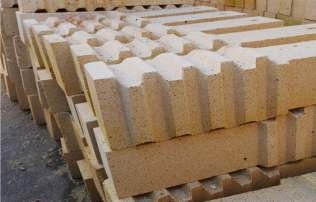

Acid Resistant Bricks, Tiles & Bonding Chemicals

Anti-acid bricks and tiles for chemical plants, fertilizer units, refineries, and effluent treatment. Complete with bonding chemicals — silicate powders, furan resin, bitumen, mastic.

Acid Proof 230×115×75 mm
Acid Proof 230×115×38 mm
Sodium Silicate Powder & Solution
Potassium Silicate · Furan Resin · Bitumen 90/15 · Mastic

Request Acid-Brick Quote →

Acid Resistant Bricks — Physical & Chemical 2 SIZES

Property	Type-1 (230×115×75)	Type-2 (230×115×38)
Bulk Density (g/cc)	≥ 2.20	≥ 2.20
Water Absorption	≤ 2 %	≤ 2 %
Compressive Strength (N/mm²)	≥ 80	≥ 80
Flexural Strength (N/mm²)	≥ 15	≥ 15
Acid Resistance (Sulphuric 70%)	≥ 96 %	≥ 96 %
Alkali Resistance	Good	Good
Modulus of Rupture (N/mm²)	≥ 20	≥ 20
SiO₂ Content	≥ 70 %	≥ 70 %

Bonding chemicals available: Sodium Silicate (powder + liquid) · Potassium Silicate Powder · Furan Resin · Bitumen 90/15 · Mastic Powder.

🔩 Structural Support

Structural · Fabricated to Spec

Metallic & Ceramic Anchors

Precision-fabricated anchors for holding castable, ceramic fibre, and refractory linings in place — walls, roofs, ducts, cyclones, and chimneys.

Metallic anchors — SS 304 / SS 310 / SS 314 / Inconel
Ceramic anchors — high-alumina for extreme service
Y-type, V-type, U-type, L-type standard shapes
Custom fabrication as per lining spec

Request Anchor Quote →

Anchor Range STANDARD + CUSTOM

Type	Material	Application	Max Service Temp
Y-Anchor	SS 304 / 310	Castable walls & ducts	1050°C
V-Anchor	SS 310 / 314	Furnace roofs & hot zones	1150°C
U-Anchor	SS 304 / Inconel	Ceramic fibre linings	1250°C
L-Anchor	SS 310	Cyclone & boiler	1100°C
Ceramic Anchor	High-Alumina	Extreme temp lining	1400°C

🏭 In-House Manufactured

Arora Manufacturing Division

Pre-Cast Pre-Fired Blocks (PCPF)

Custom-cast, custom-fired refractory blocks manufactured in-house at our Bhandup facility. Ideal for launder systems, hearth applications, reheating furnaces, and burner assemblies.

Aluminium Launder Blocks — smelter transfer channels
Aluminium Hearth Blocks — furnace floors
Reheating Furnace Bottom Blocks
Burner Blocks — custom geometries

Request PCPF Quote →

Manufacturing Facility — What We Cast CUSTOM SHAPES

Block Type	Al₂O₃ (%)	Max Temp	Typical Industry
Aluminium Launder	60 – 70	1200°C	Al smelters
Aluminium Hearth	70 – 80	1250°C	Al smelters · foundries
Reheating Furnace Bottom	60 – 70	1500°C	Steel mills · forging
Burner Block	60 – 80	1600°C	Boilers · kilns
Custom Geometries	To spec	To spec	Client-specific

Manufactured on-site with batch-type heating furnace (max 1300°C), 2 pan mixers, needle & table vibrators, and dedicated storage & pre-heating yard.

👷 On-Site Team

Turnkey Refractory Contracting

In-Situ Refractory Lining Services

Full refractory execution by our in-house team — from design consultation to material supply to installation, dry-out, and commissioning. Pan-India site coverage.

Furnace design consultation & refractory zoning
Site installation of castables, bricks, ceramic fibre
Anchor welding & module assembly
Controlled dry-out & commissioning
Energy-saving retrofit projects
Emergency shutdown response

Request Site Visit →

FAQ

What plant managers and procurement heads ask us most.

We supply 9 refractory families: alumina firebricks (AR-30 to AR-80B), insulation bricks, Calderys castables & mortars, Morgan Thermal ceramic fibre, calcium silicate, acid-resistant bricks with bonding chemicals, metallic & ceramic anchors, pre-cast pre-fired blocks (PCPF), and on-site lining services.

Both. We manufacture PCPF blocks and select firebrick grades in-house at Bhandup, and we are the authorized channel partner for Calderys India Refractories (castables) and Morgan Thermal Ceramics (ceramic fibre).

Yes. Our manufacturing division routinely produces custom launder blocks, hearth blocks, burner blocks, and reheating furnace bottom blocks per client drawings.

For standard grades held in stock, yes — we serve both bulk procurement and small trial/replacement orders.

All figures shown are typical values within IS standards. For binding contract specification, we issue product data sheets with tested batch values — request a data sheet when placing your enquiry.

In most cases, yes. Share the competitor's spec sheet and we'll cross-reference the closest Arora grade or a Calderys/Morgan Thermal equivalent from our authorized range.

Yes. The AR-IS-8 Commercial grade and the AR-series firebricks are manufactured to IS 8 standards. Test certificates available on request.

WhatsApp us at +91 98200 25226 with product grade + quantity, or fill the enquiry form on this page. Standard turnaround: within 24 working hours.

Yes. We regularly service PSU steel, power, and cement plants under standard PO terms — including e-tendering and GEM portal transactions on request.

Standard terms are advance for first supply and 30–45 day credit thereafter, subject to credit review. Bulk / project orders are negotiated case-by-case.

Yes. We ship to all major industrial hubs across India via road transport, with bulk consignments arranged on FTL/PTL basis. Site delivery co-ordination is included.

Stocked grades: 3–7 working days. Custom PCPF blocks: 2–4 weeks depending on firing schedule. Emergency dispatches for shutdown situations can be arranged.

Yes. We maintain buffer inventory of critical grades and mobilize our contractor team on short notice for emergency relining work.

Yes — this is one of our strongest value-adds. Our founder brings 50+ years of refractory design experience. Share your application (industry, zone, temp, atmosphere) and we recommend the optimal grade + lining configuration.

Yes. Insulation upgrades using ceramic fibre and calcium silicate frequently deliver measurable fuel savings. We audit existing linings and quote payback-focused retrofits.

Yes. Our in-house team executes site installation, anchor welding, module assembly, controlled dry-out and commissioning under a single scope.
